S615

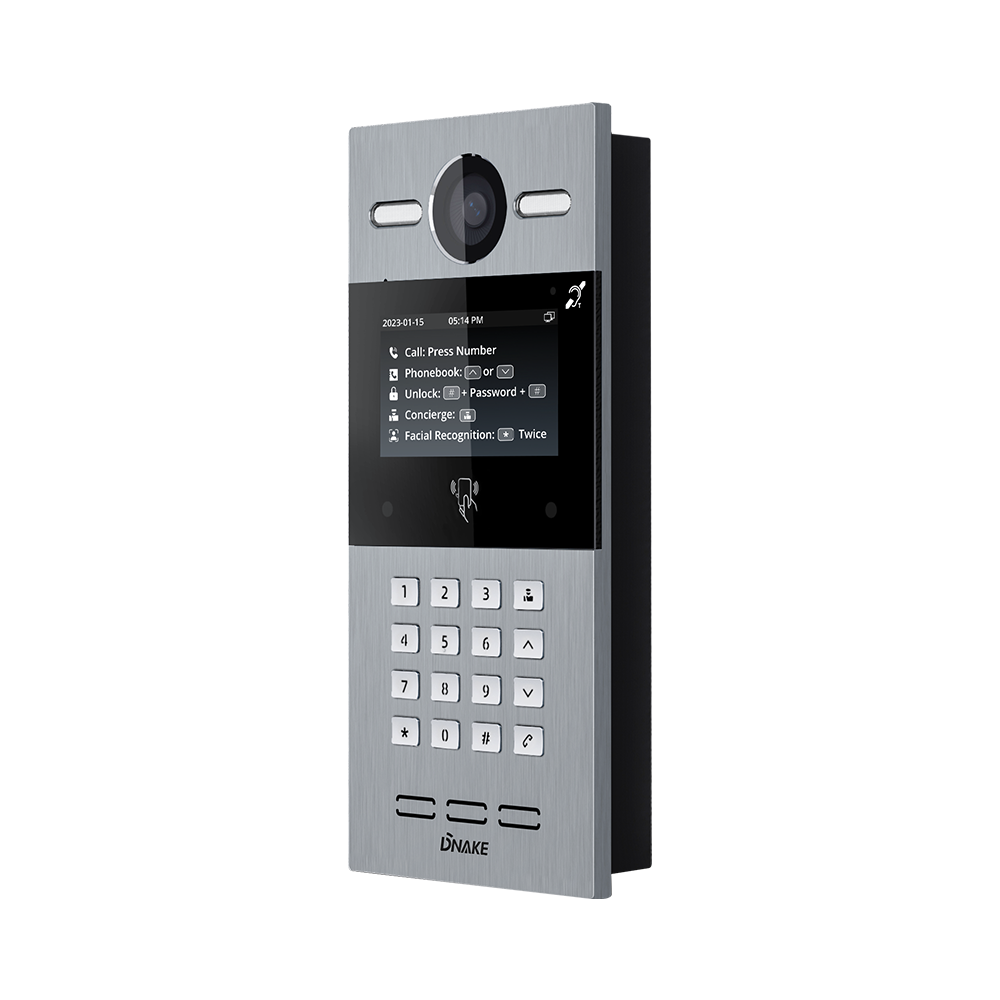

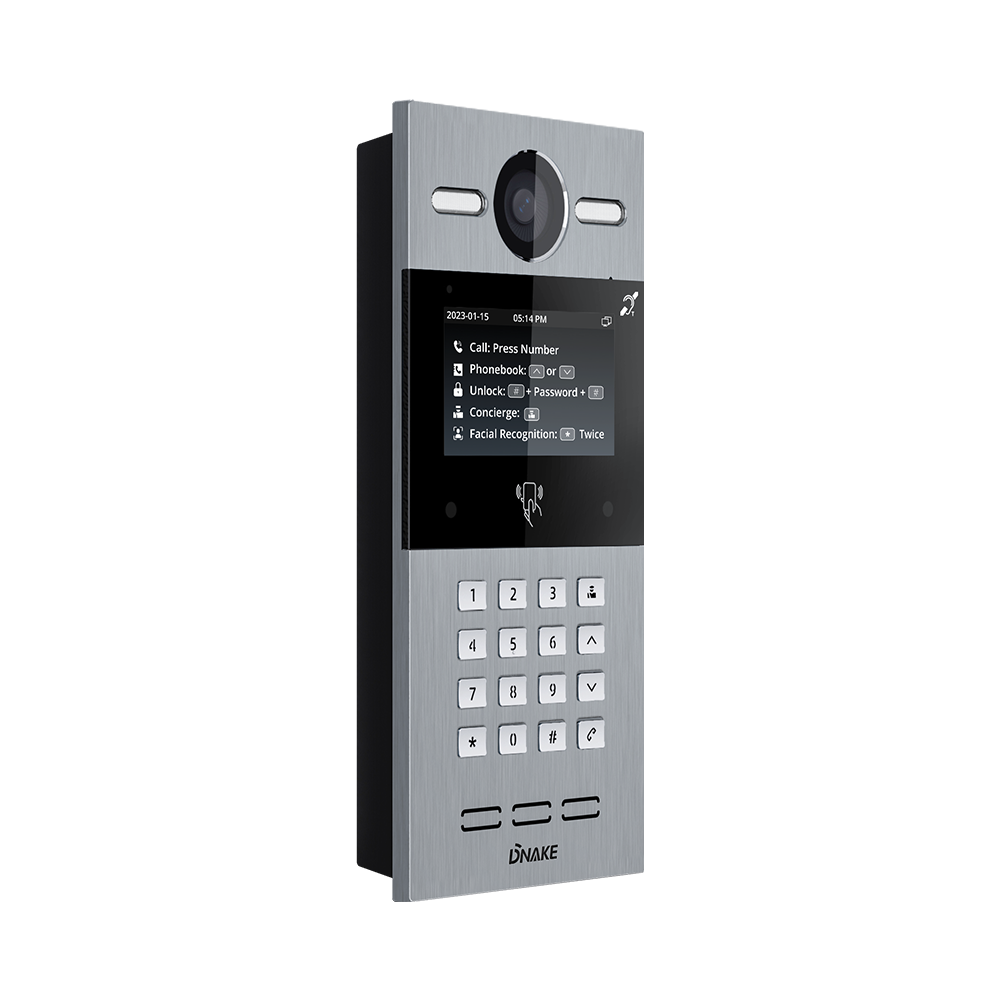

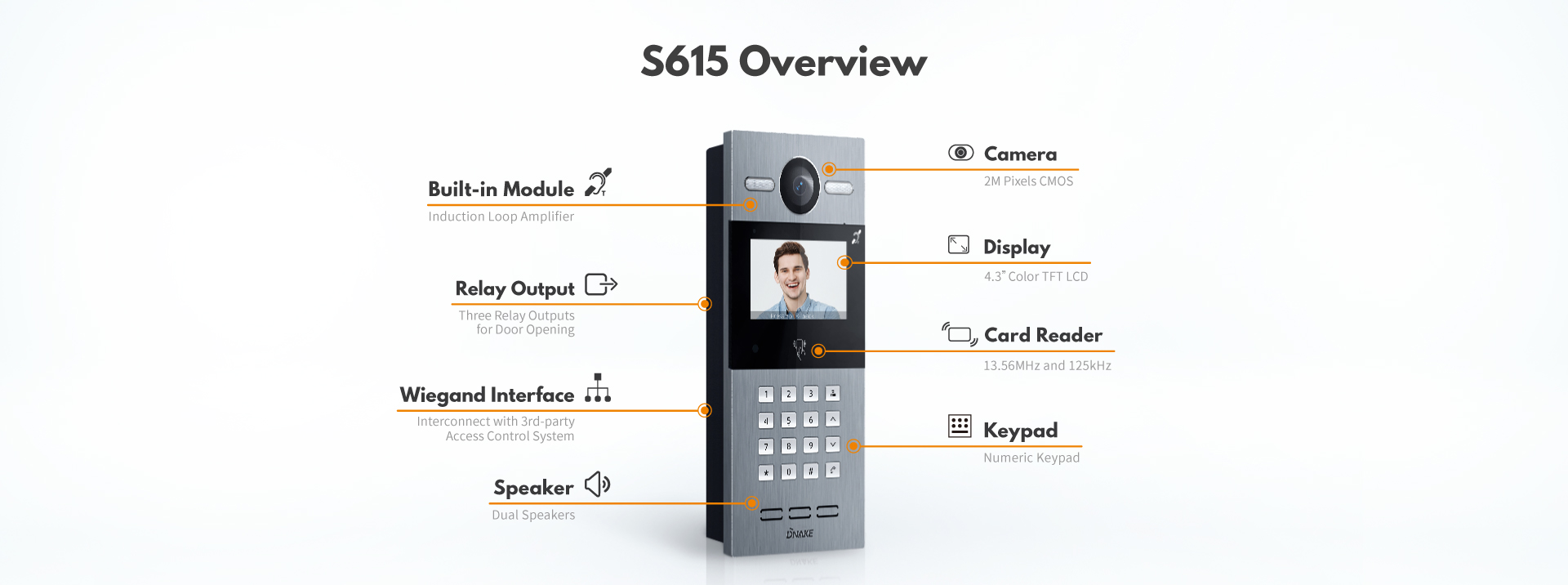

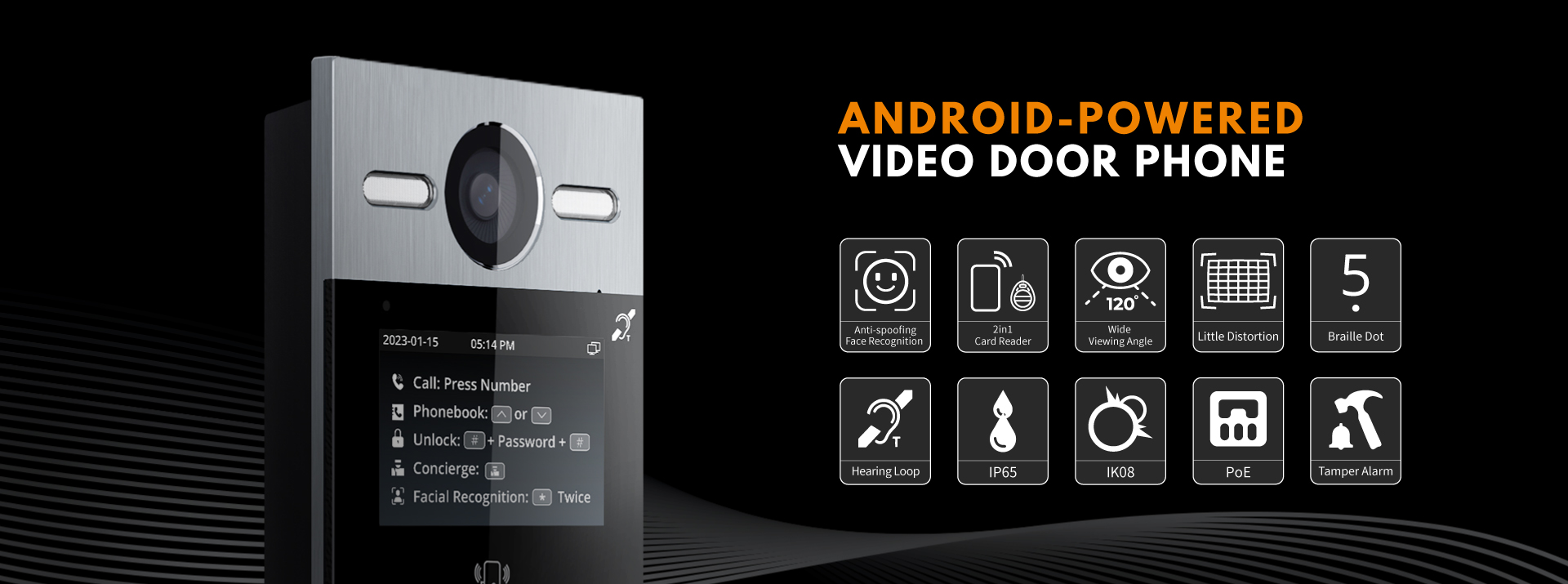

4.3” Facial Recognition Android Door Phone

• 4.3” color TFT LCD

• 3 output relays for door locks

• 120° wide-angle 2MP HD camera with automatic lighting

• Support WDR technology to lighten the dark areas and darken the overexposed parts of the image

• Door entry methods: call, face, IC card (13.56MHz), ID card (125kHz), PIN code, APP

• Anti-spoofing algorithm against photos and videos

• Support 20,000 users, 20,000 faces, and 60,000 cards

• Tamper alarm

• Support surface & flush mounting

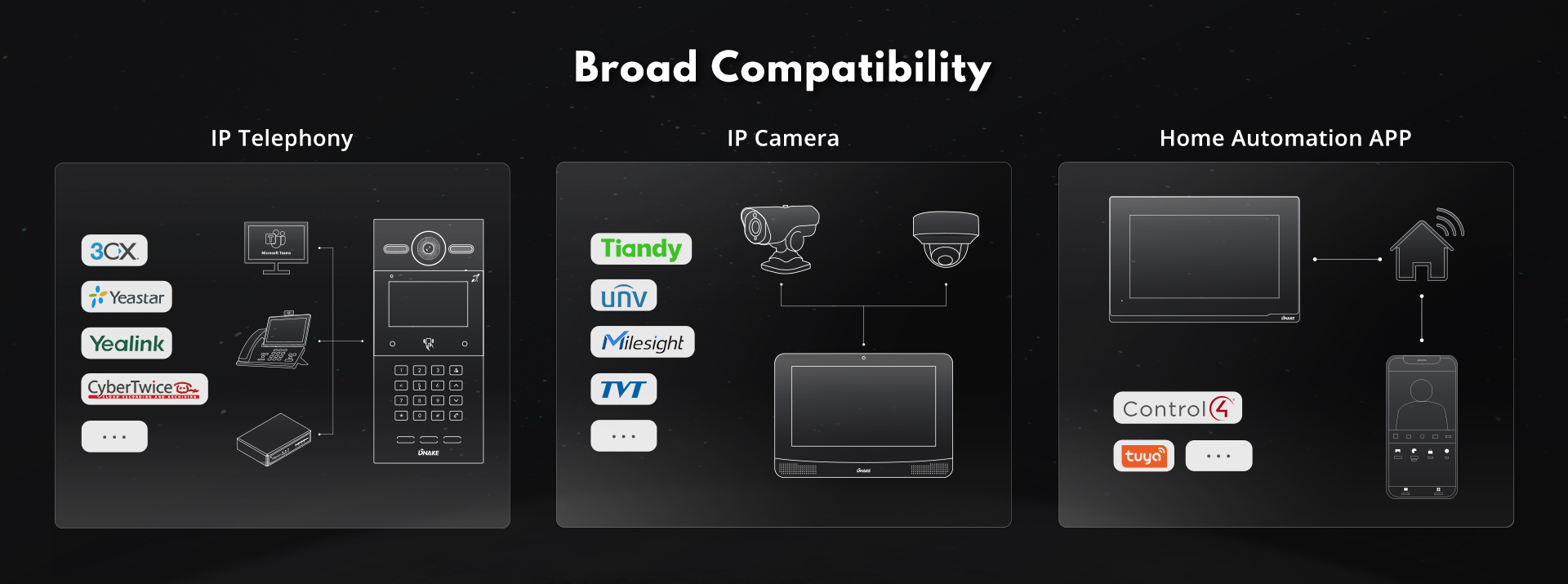

• Easy integration with other SIP devices by SIP 2.0 protocol

Wiegand IP65 IK08

Get a Quote

Spec

Physical Property
System	Android
RAM	1GB
ROM	8GB
Front Panel	Aluminum
Button	Mechanical
Power Supply	PoE+ (802.3at) or DC12V/2A
Standby Power	8W
Rated Power	16W
Camera	2MP, CMOS, WDR
Door Entry	Face, IC (13.56MHz) & ID (125kHz) card, PIN code, APP
IP/IK Rating	IP65 / IK08
Installation	Flush Mounting & Surface Mounting
Surface Mounting Dimension	295 x 133 x 42.7 mm
Flush Mounting Dimension	295 x 133 x 63.5 mm
Working Temperature	-40℃ - +55℃
Storage Temperature	-40℃ - +70℃
Working Humidity	10%-90% (non-condensing)
Display
Display	4.3-inch TFT LCD
Resolution	480 x 272
Audio & Video
Audio Codec	G.711
Video Codec	H.264
Video Resolution	up to 1920 x 1080
Viewing Angle	120°(H) / 75°(V) / 131°(D)
Light Compensation	LED white light
Networking
Protocol	SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
Port
Wiegand Port	Support
Ethernet Port	1 x RJ45, 10/100 Mbps adaptive
RS485 Port	1
Relay Out	3
Reset Button	1
Input	4
