C112

1-button SIP Video Door Phone

280SD-C12 Linux SIP2.0 Villa Panel

• Compact design
• 2MP HD digital WDR camera
• 110° wide viewing angle
• Motion detection
• Tamper alarm
• Premium audio and video quality (H.265 codec)
• Optional Wi-Fi
• Door entry methods: call, IC card (13.56MHz), APP
• 3 integrated indicators
• Support 60,000 cards
• Low temperature resistance(-40℃ to 55℃)
• Easy integration with other SIP devices by SIP 2.0 protocol
 WiegandPoEIP65Onvif logo1
C112-2024 C112-_02 C112-_03 C112_04

Spec

Download

Product Tags

 Physical Property
  System  Linux
  Front Panel  Plastic
  Reset Button  1
  Power Supply  PoE (802.3af) or DC12V/2A
  Camera  2MP, CMOS, Digital WDR
  Indicator Light  3
  Door Entry  IC (13.56MHz) Card, APP
  IP Rating  IP65
  Installation  Surface Mounting
  Dimension  130 x 50 x 28 mm
  Working Temperature  -40℃ - +55℃
  Storage Temperature  -40℃ - +70℃
  Working Humidity  10%-90% (non-condensing)
 Audio & Video
  Audio Codec  G.711
  Video Codec  H.264, H.265
  Video Resolution  1920 x 1080
  Viewing Angle  110°(H) / 60°(V) / 125°(D)
  Light Compensation  LED white light

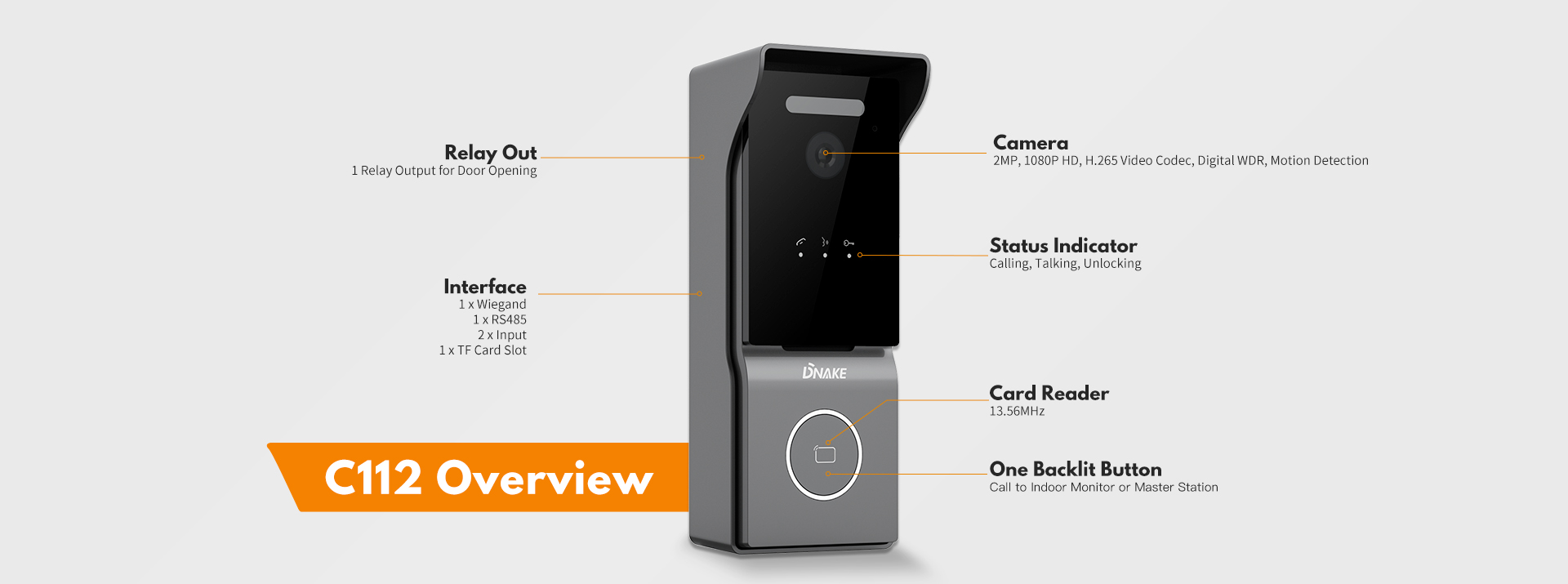

 Networking
  Protocol  SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
 Port
  Wiegand Port  Support
  Ethernet Port  1 x RJ45, 10/100 Mbps adaptive
  RS485 Port  1
  Relay Out  1
  Input  2
  TF Card Slot  1
  • Datasheet 904M-S3.pdf
    Download
