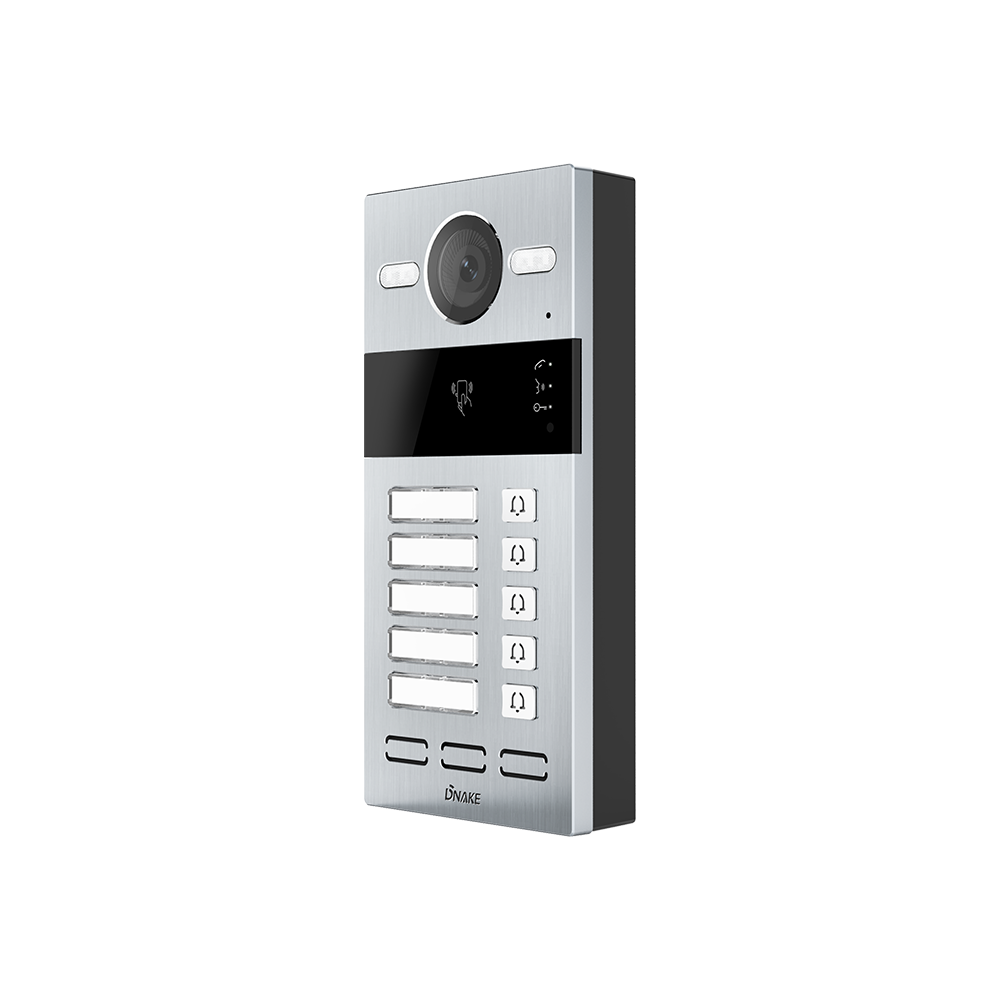

S213M

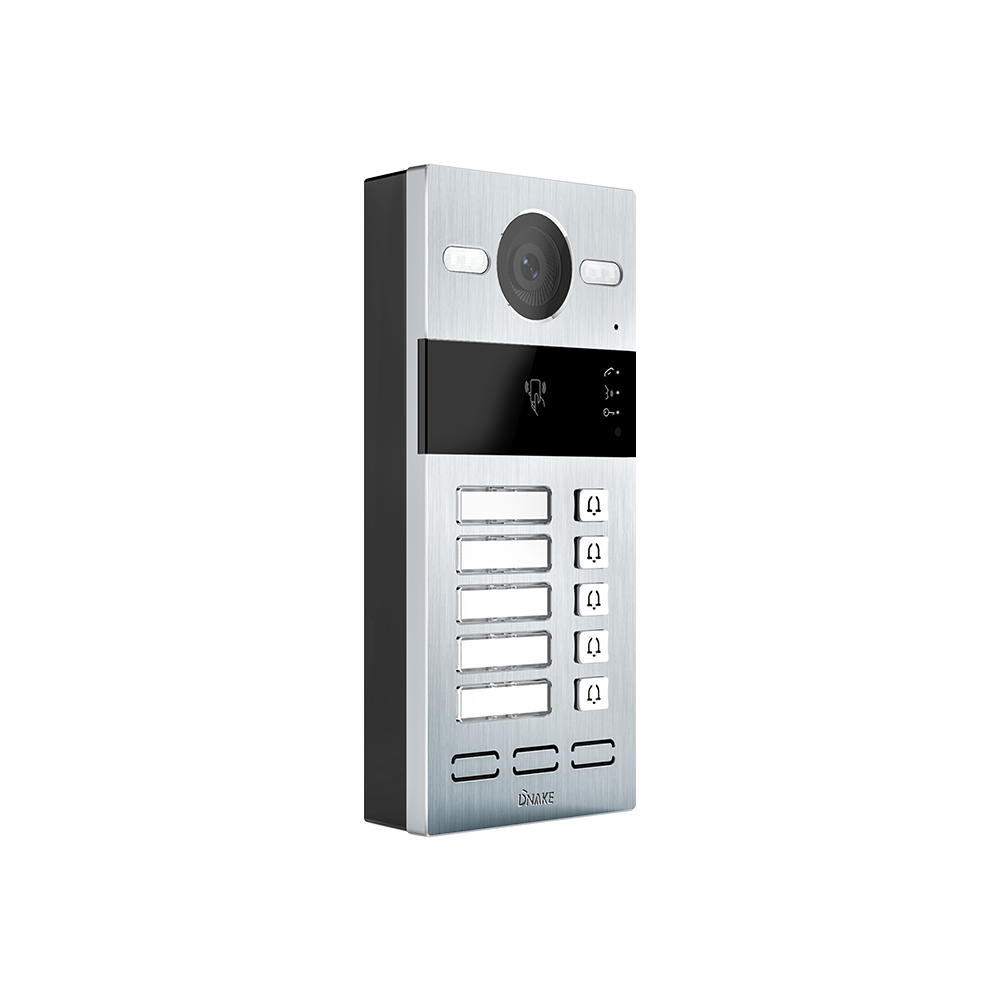

Multi-button SIP Video Door Phone

280SD-C12 Linux SIP2.0 Villa Panel

• Aluminum alloy panel

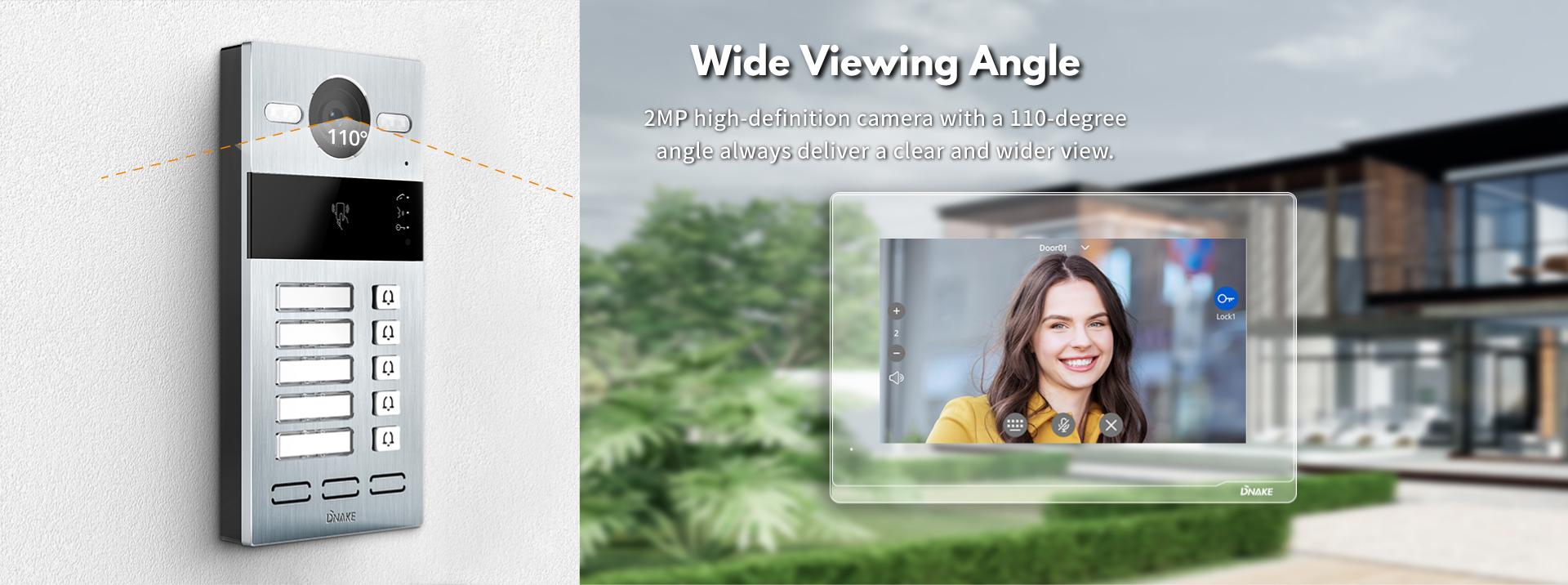

• 110° wide-angle 2MP HD camera with automatic lighting

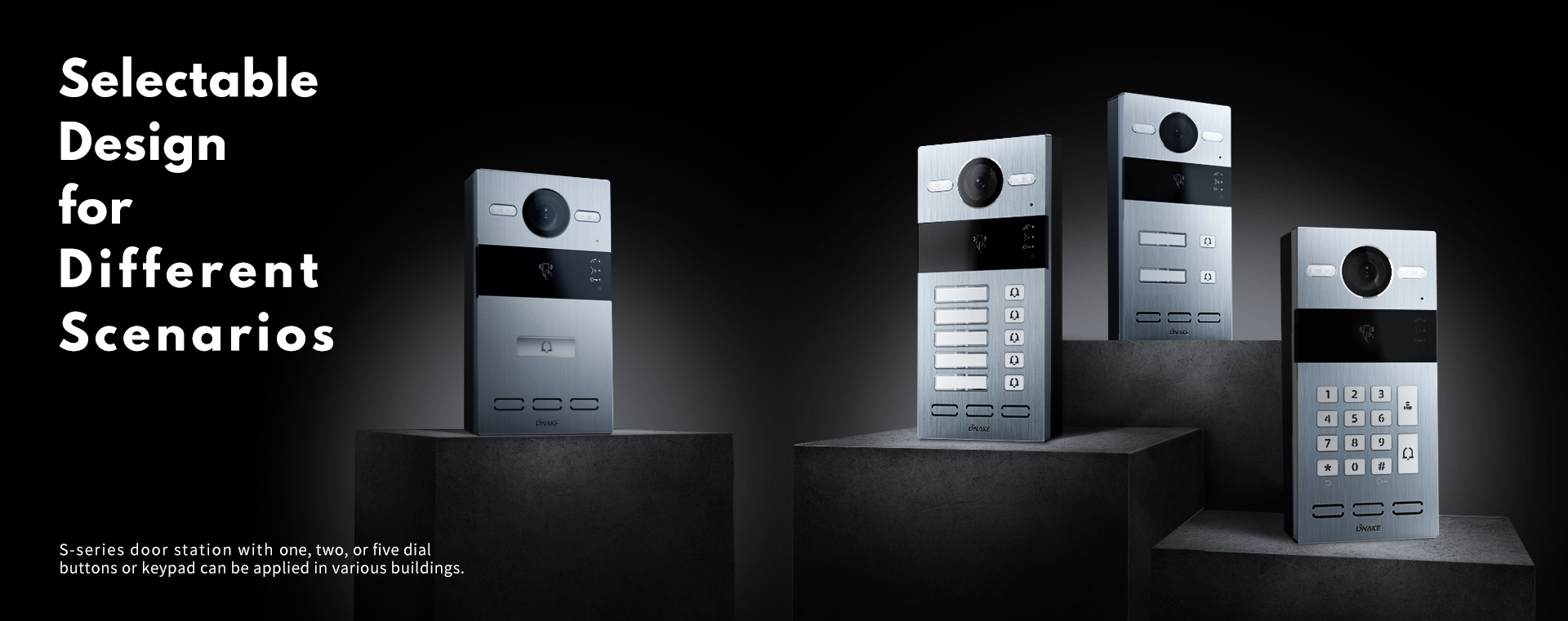

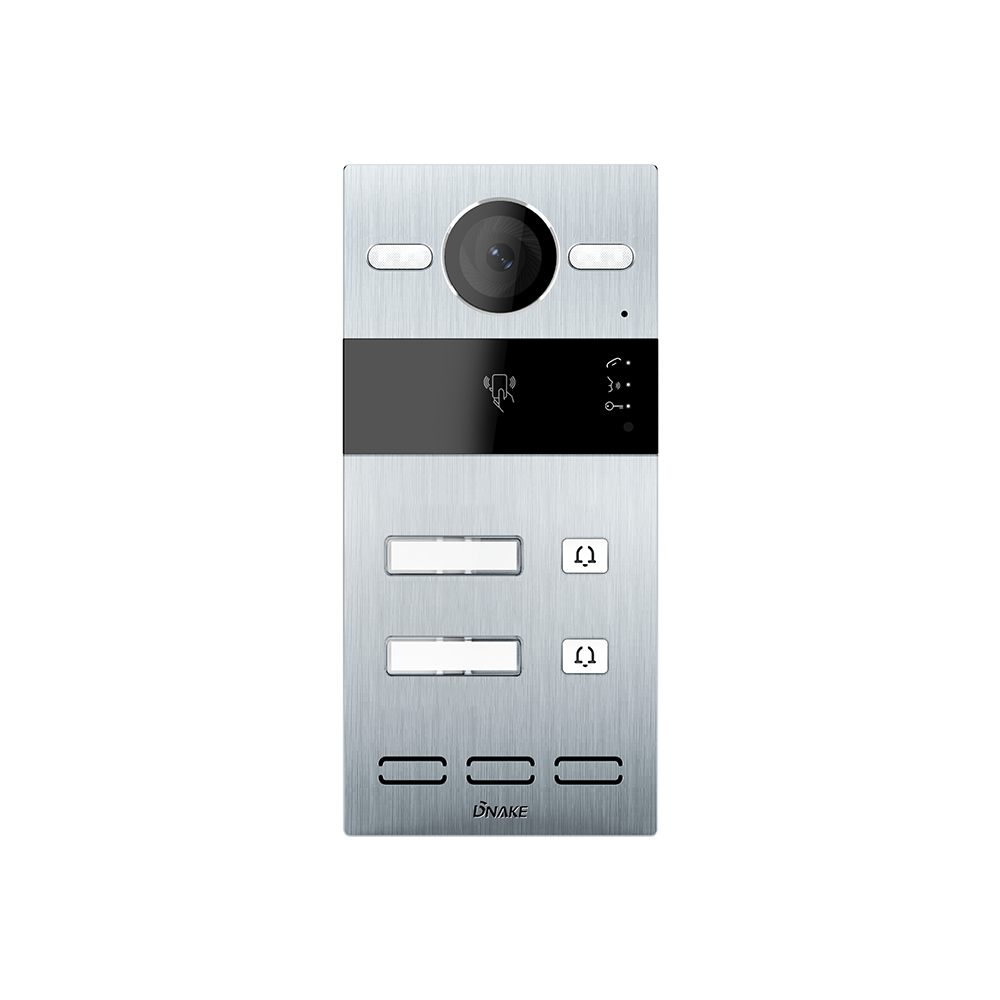

• Multi-button with name plate supported (2 or 5 buttons optional)
• Door entry methods: call, IC card (13.56MHz), ID card(125kHz), APP
• Support 60,000 cards
• 3 integrated indicators
• IP65, IK08
• Tamper alarm
• Standard PoE (IEEE802.3af) / 12V DC
• Low temperature resistance(-40℃ to 55℃)
• Support surface & flush mounting

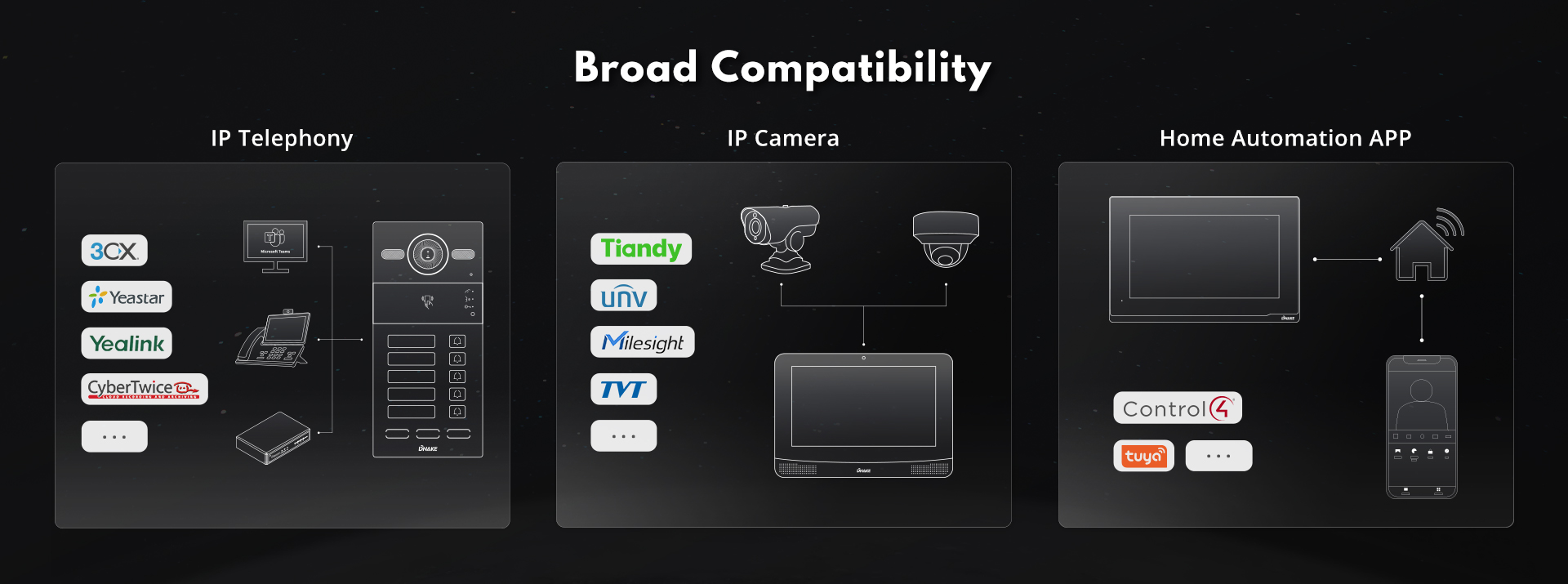

• Easy integration with other SIP devices by SIP 2.0 protocol
 Onvif logo1WiegandPoEIP65IK08

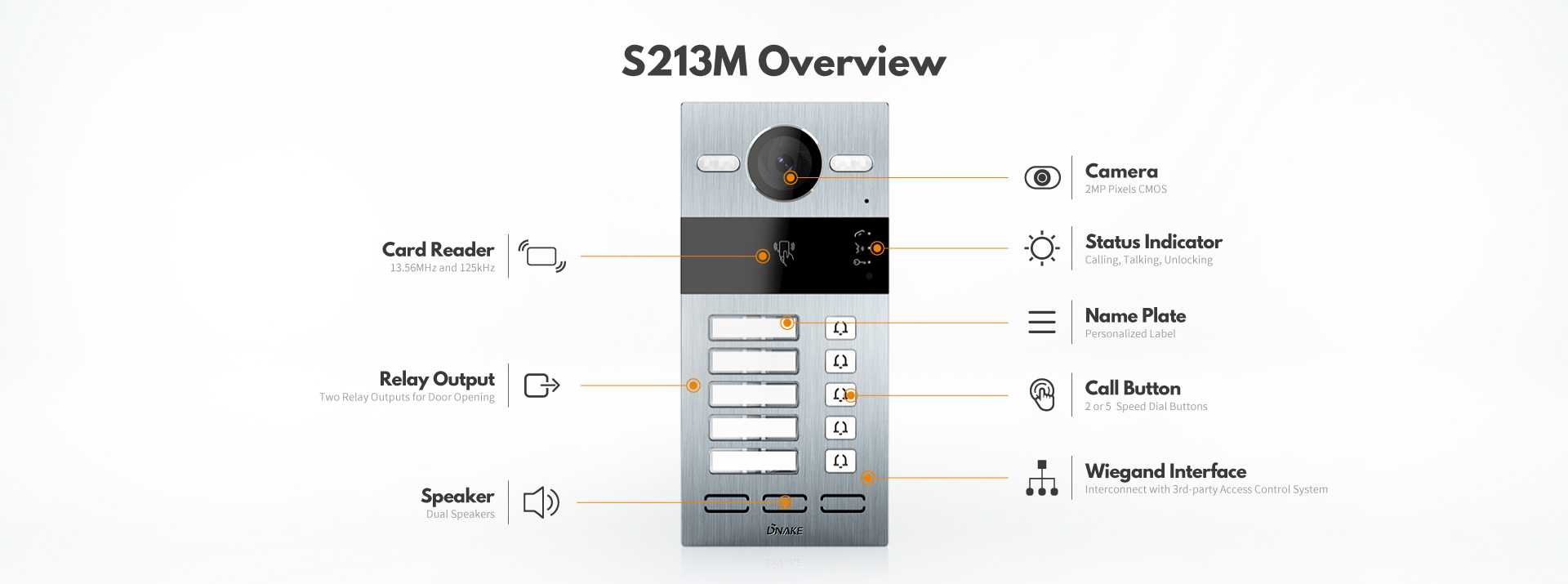

2312220 S213M  Detail_1 230904 S213M S213M 2023 Detail3 S213M Detail5 S-series Intercom Details 230725-Product-compatibility-S213M

Spec

Download

Product Tags

 Physical Property
  System  Linux
  RAM  64MB
  ROM  128MB
  Front Panel  Aluminum
  Reset Button  1
  Power Supply  PoE (802.3af) or DC12V/2A
  Standby Power  1.5W
  Rated Power  3.5W
  Camera  2MP, CMOS
  Indicator Light  3
  Door Entry  IC (13.56MHz), ID (125kHz) Card, APP
  IP/IK Rating  IP65 / IK08
  Installation  Surface & Flush Mounting
  Dimension  188 x 88 x 34 mm (Surface Mounting);  230 x 120 x 48 mm (Flush Mounting)
  Working Temperature  -40℃ - +55℃
  Storage Temperature  -40℃ - +70℃
  Working Humidity  10%-90% (non-condensing)
 Audio & Video
  Audio Codec  G.711
  Video Codec  H.264
  Video Resolution  1280 x 720
  Viewing Angle  110°(H) / 60°(V) / 125°(D)
  Light Compensation  LED white light
 Networking
  Protocol  SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
 Port
  Wiegand Port  Support
  Ethernet Port  1 x RJ45, 10/100 Mbps adaptive
  RS485 Port  1
  Relay Out  2
  Input  2
  • Datasheet 904M-S3.pdf
    Download

Get A Quote

Related Products



SIP Video Door Phone with Keypad
S213K

SIP Video Door Phone with Keypad

1-button SIP Video Door Phone
280SD-C12

1-button SIP Video Door Phone

4.3” SIP Video Door Phone
S215

4.3” SIP Video Door Phone

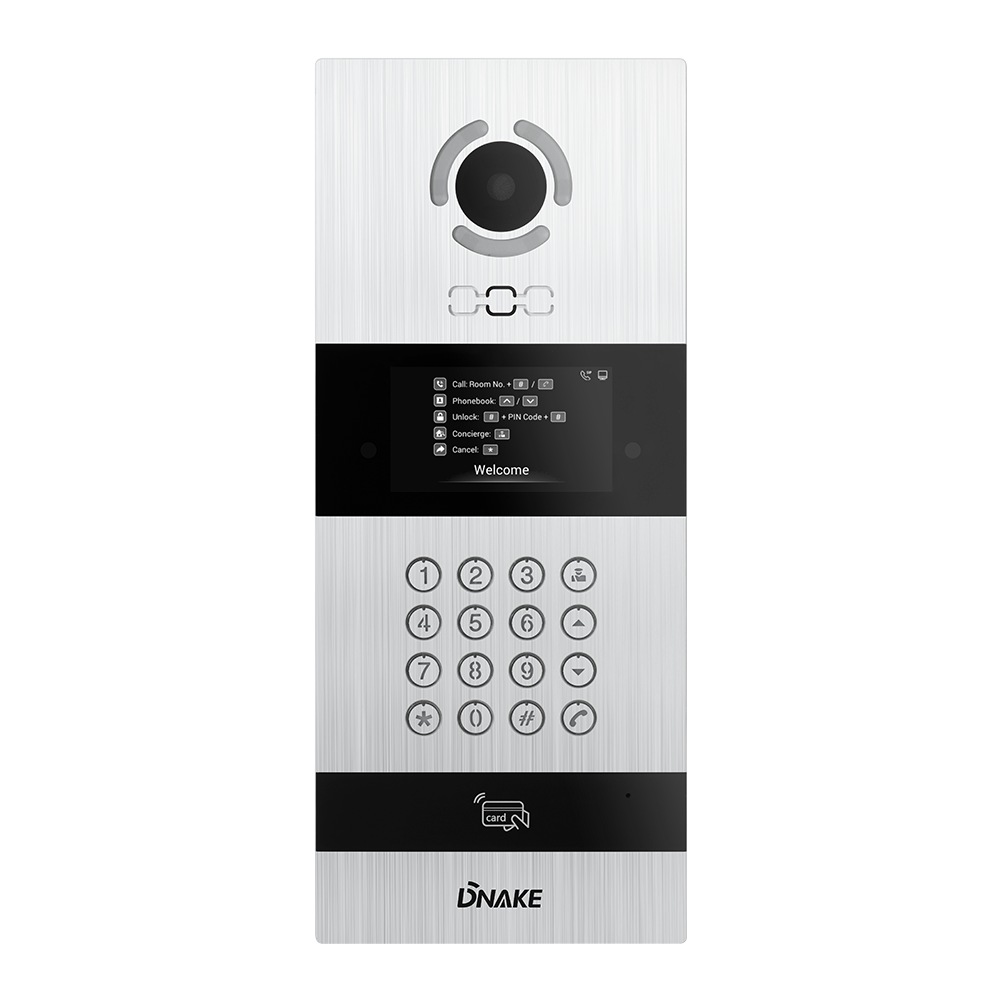

4.3” SIP Video Door Phone
280D-B9

4.3” SIP Video Door Phone

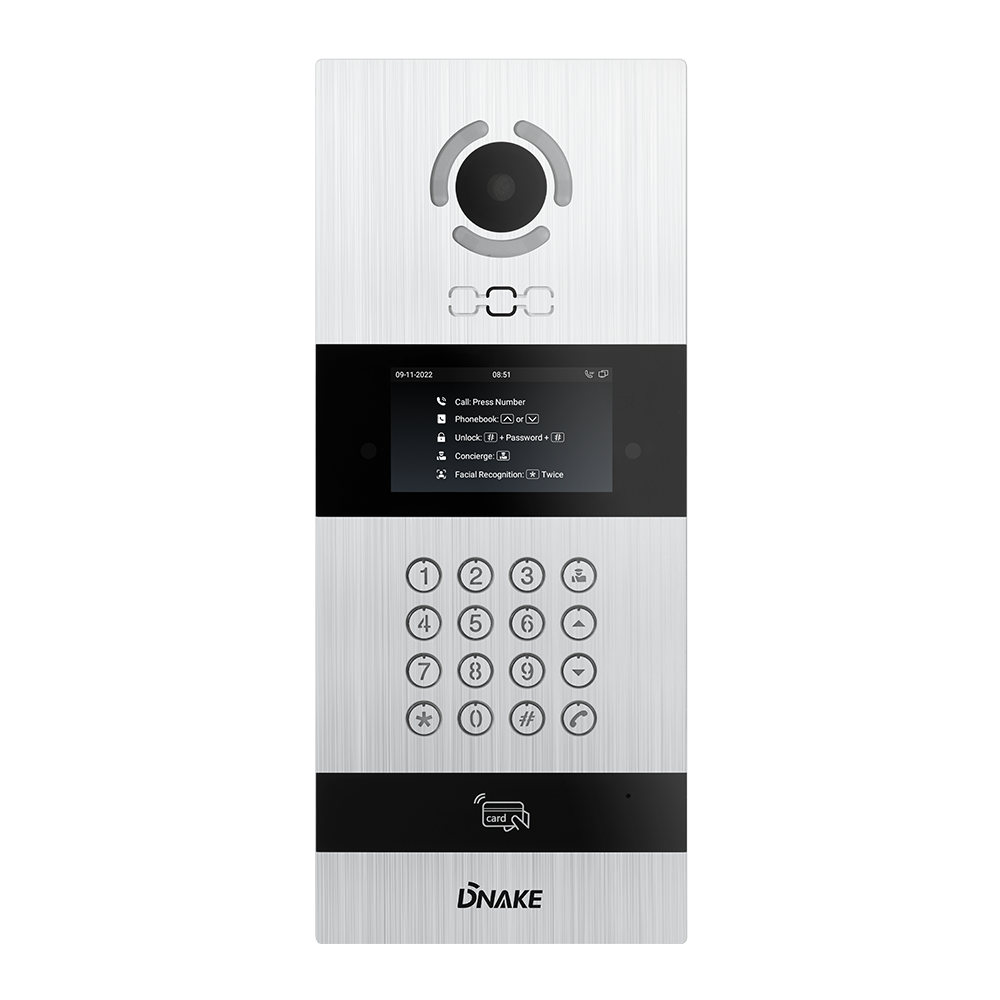

4.3” Facial Recognition Android Door Phone
902D-B9

4.3” Facial Recognition Android Door Phone

4.3” Facial Recognition Android Door Phone
S615

4.3” Facial Recognition Android Door Phone

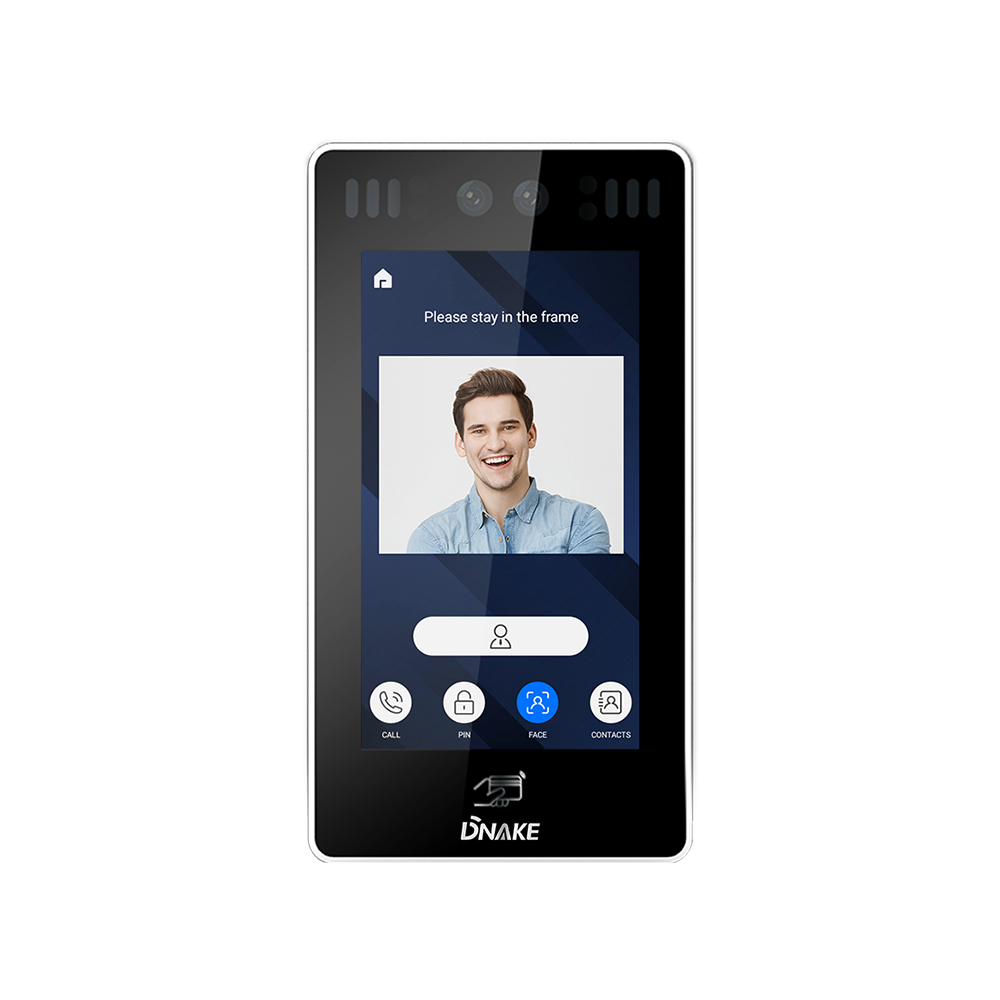

7” Facial Recognition Android Door Phone
