    H618

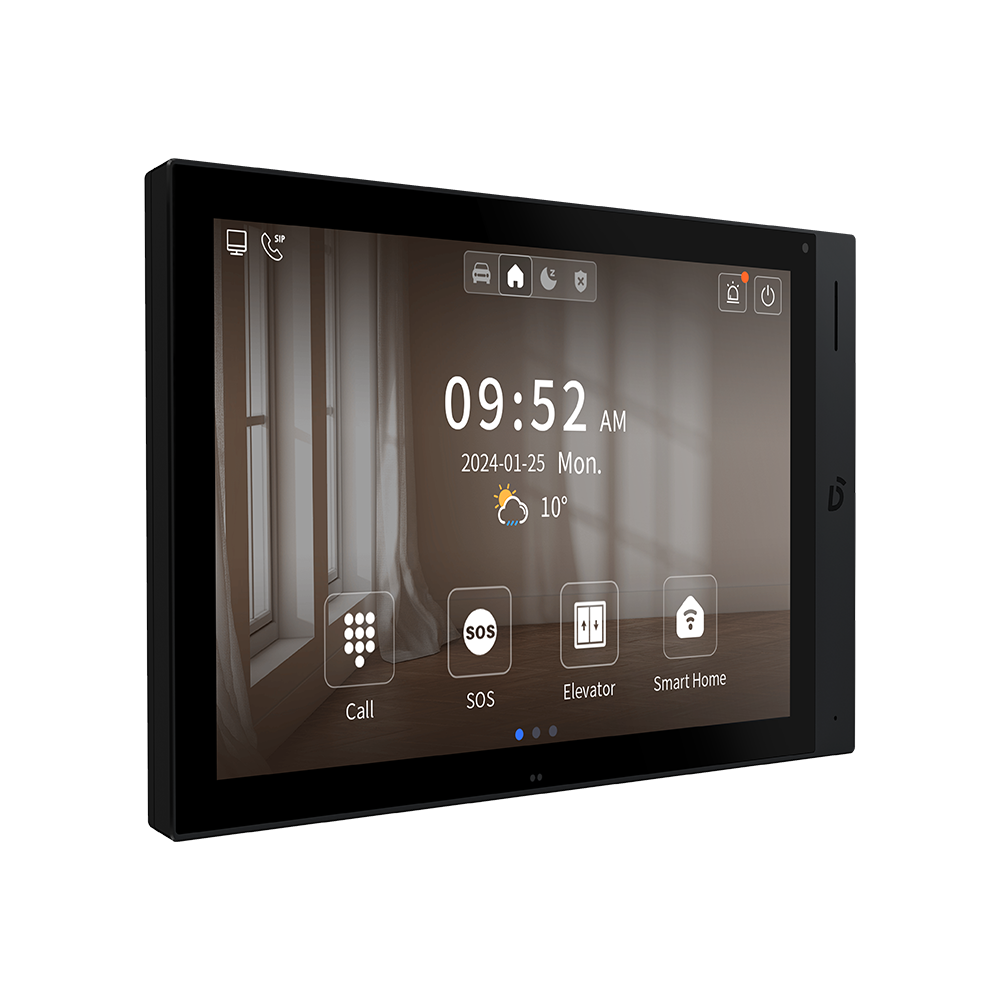

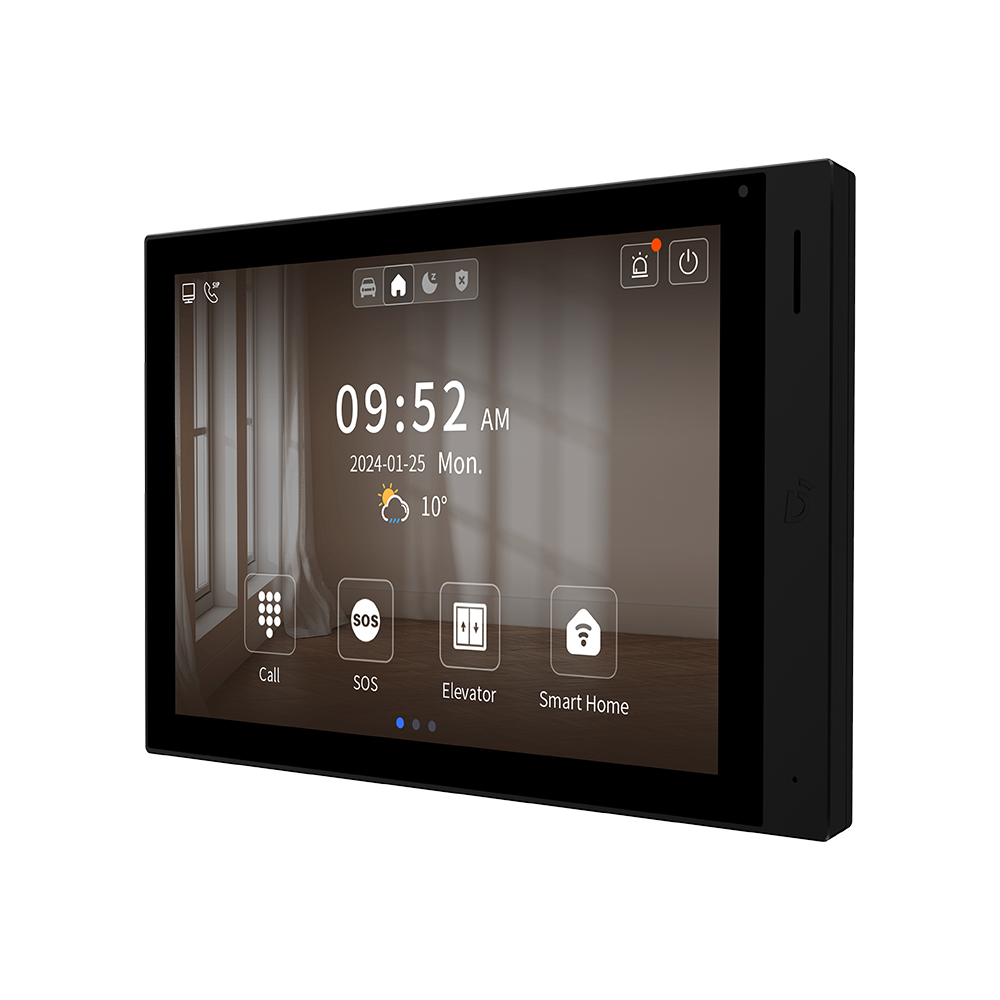

    10.1” Smart Control Panel

    904M-S3 Android 10.1″ Touch Screen TFT LCD Indoor Unit

    • Excellent performance with Android 10 OS
    • 10.1” IPS capacitive touch screen, 1280 x 800
    • Easy integration with ZigBee gateway and a wide range of sensors
    • Support Tuya ecosystem
    • Enable control of various sensors and shifting between different scenes like “Home”, “Out,” “Sleep” or  “Off”
    • Configurable homepage menu to meet your needs
    • Customizible different scenes with other smart home products
    • Support monitoring 16 IP cameras
    • Optional Wi-Fi and 2MP camera
    • Easy integration with other SIP devices by SIP 2.0 protocol
    • Compatible with other smart home devices through 3rd-party apps
    Android10      Y-4icon_画板 1 副本 3
    H618 2024 Detail Page-1 Control Panel Detail H618-detail Smart Home Detail Page_1

    Spec

    Download

    Product Tags

     Physical Property
      System  Android 10
      RAM  2GB
      ROM  8GB
      Front Panel  Aluminum
      Power Supply  PoE (802.3af) or DC12V/2A
      Standby Power  3W
      Rated Power  10W
      Wi-Fi  IEEE802.11 b/g/n,@2.4GHz (Optional)
      Camera  2MP, CMOS (Optional)
      Installation  Surface Mounting/Desktop
      Dimension  264.3 x 160 x 11.8mm
      Working Temperature  -10℃ - +55℃
      Storage Temperature  -40℃ - +70℃
      Working Humidity  10%-90% (non-condensing)
     Display
      Display  10.1-inch IPS LCD
      Screen   Capacitive touch screen
      Resolution  1280 x 800
     Audio & Video
      Audio Codec  G.711
      Video Codec  H.264
     Networking
      Protocol  SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
     Port
      Ethernet Port  1 x RJ45, 10/100 Mbps adaptive
      RS485 Port  1
      Power Output  1 (12V/100mA)
      Doorbell Input  8 (use any alarm input port)
      Alarm Input  8
      Relay Output  1
      TF Card Slot  1
    • Datasheet 904M-S3.pdf
      Download
