H618

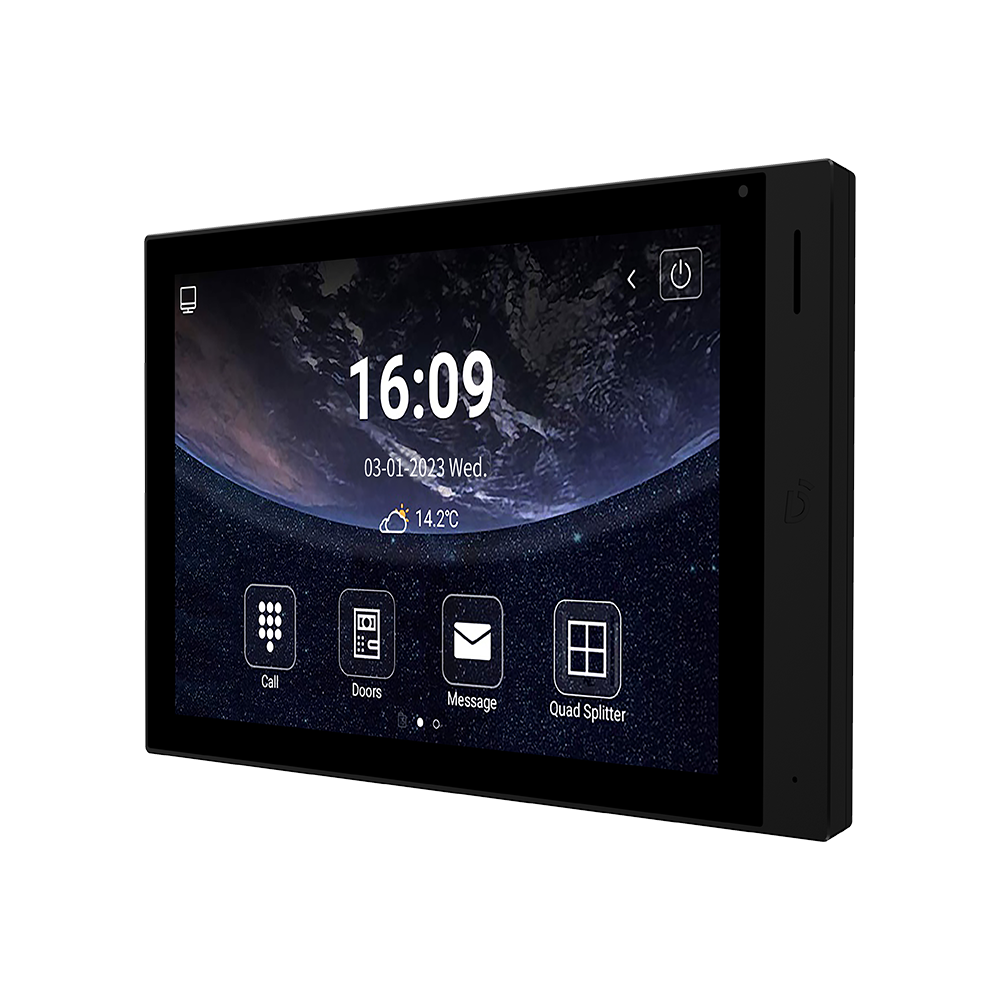

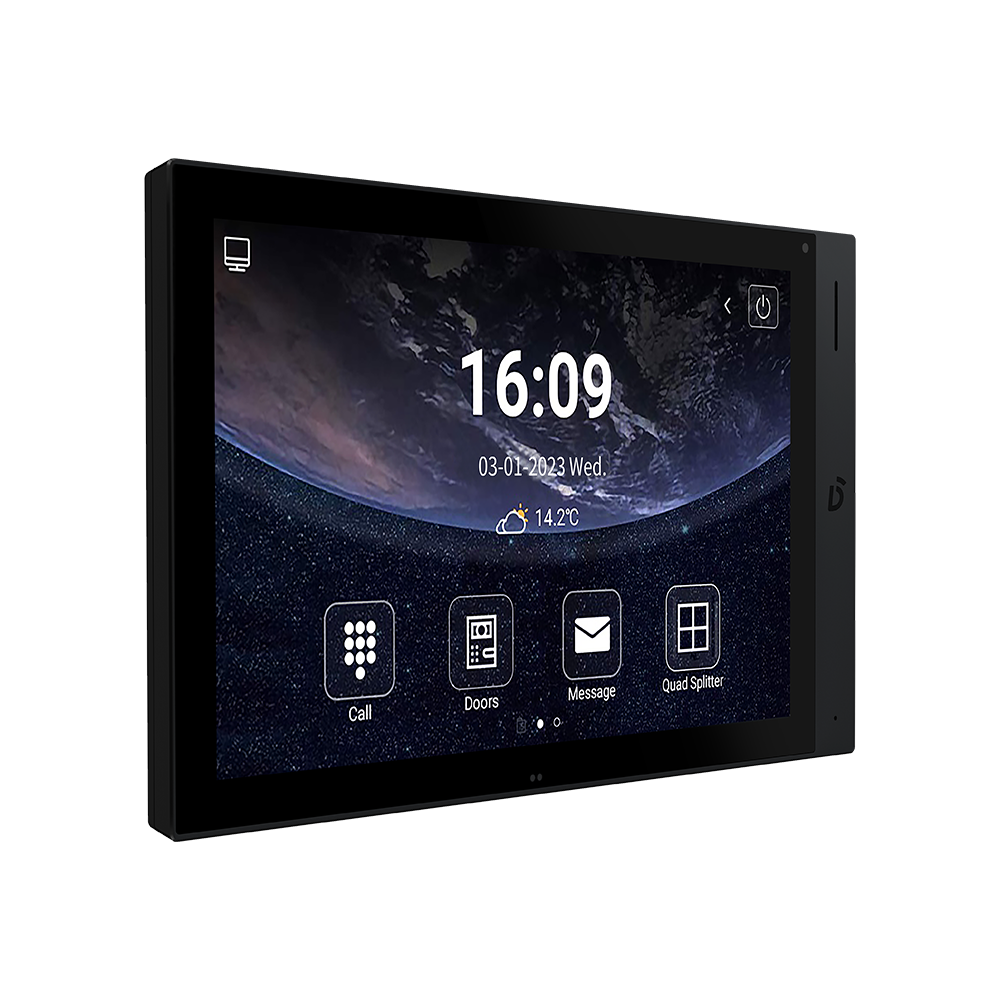

10.1” Android 10 Indoor Monitor

904M-S3 Android 10.1″ Touch Screen TFT LCD Indoor Unit

Excellent performance with Android 10 OS
• 2GB RAM, 8 GB ROM
• 10.1” IPS capacitive touch screen, 1280 x 800
• Aluminum front panel
• Support monitoring 16 IP cameras
• Powered by PoE or power adapter (DC12V/2A)
• 802.11b/g/n Wi-Fi and 2MP camera optional
• Wake up screen automatically when someone comes close
• Surface or desktop mounting
• Easy integration with other SIP devices by SIP 2.0 protocol
• Compatible with other smart home devices through 3rd-party apps
Android10      Y-4icon_画板 1 副本 3
New Detail-Page-1 H618 Detail-Page-1920x750px-3 New Detail-Page-1920x750px-5 H618 Detail-Page-1920x750px-6 H618 Detail-Page-1920x750px-7

Spec

Download

Product Tags

 Physical Property
  System  Android 10
  RAM  2GB
  ROM  8GB
  Front Panel  Aluminum
  Power Supply  PoE (802.3af) or DC12V/2A
  Standby Power  3W
  Rated Power  10W
  Wi-Fi  IEEE802.11 b/g/n,@2.4GHz (Optional)
  Camera  2MP, CMOS (Optional)
  Installation  Surface Mounting/Desktop
  Dimension  264.3 x 160 x 11.8mm
  Working Temperature  -10℃ - +55℃
  Storage Temperature  -40℃ - +70℃
  Working Humidity  10%-90% (non-condensing)
 Display
  Display  10.1-inch IPS LCD
  Screen   Capacitive touch screen
  Resolution  1280 x 800
 Audio & Video
  Audio Codec  G.711
  Video Codec  H.264
 Networking
  Protocol  SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
 Port
  Ethernet Port  1 x RJ45, 10/100 Mbps adaptive
  RS485 Port  1
  Power Output  1 (12V/100mA)
  Doorbell Input  8 (use any alarm input port)
  Alarm Input  8
  Relay Output  1
  TF Card Slot  1
  • Datasheet 904M-S3.pdf
    Download

Get A Quote

Related Products



4.3” SIP Video Door Phone
S215

4.3” SIP Video Door Phone

7” Linux-based Indoor Monitor
E216

7” Linux-based Indoor Monitor

7” Android 10 Indoor Monitor
E416

7” Android 10 Indoor Monitor

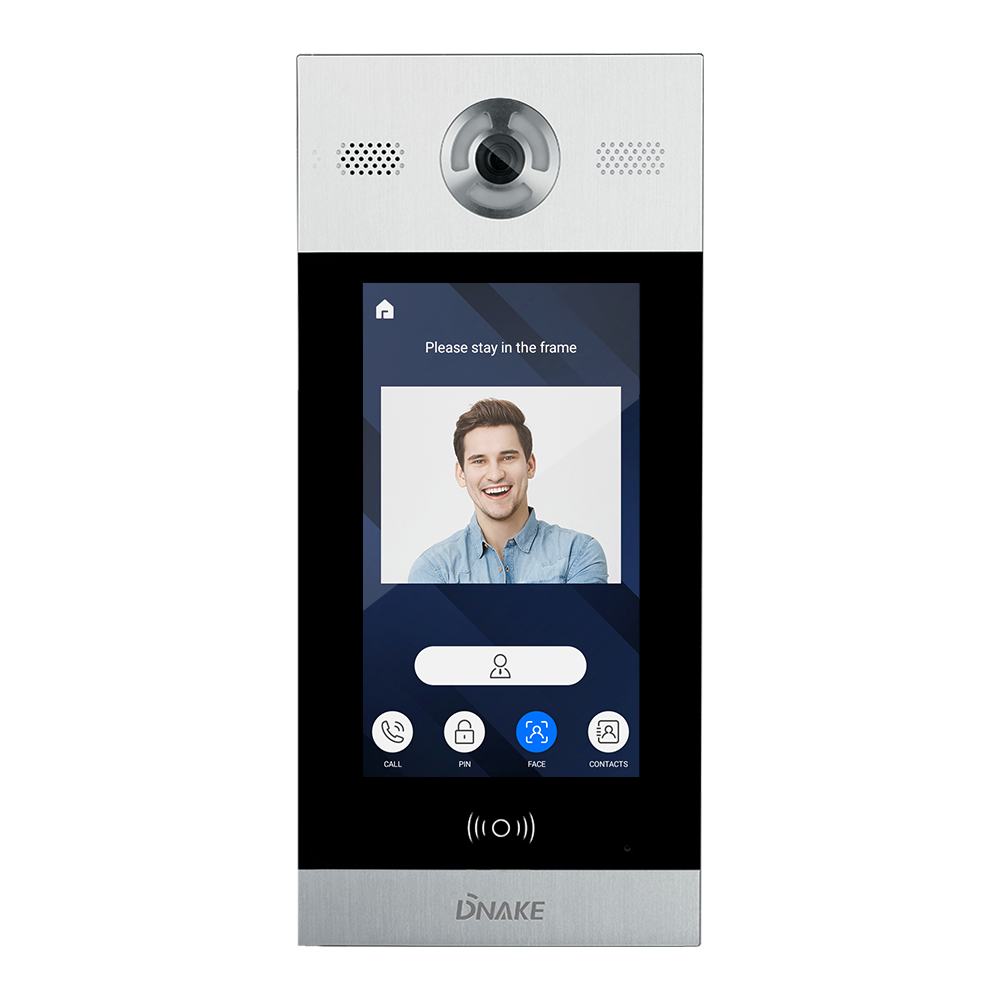

10.1” Facial Recognition Android Door Phone
902D-B6

10.1” Facial Recognition Android Door Phone

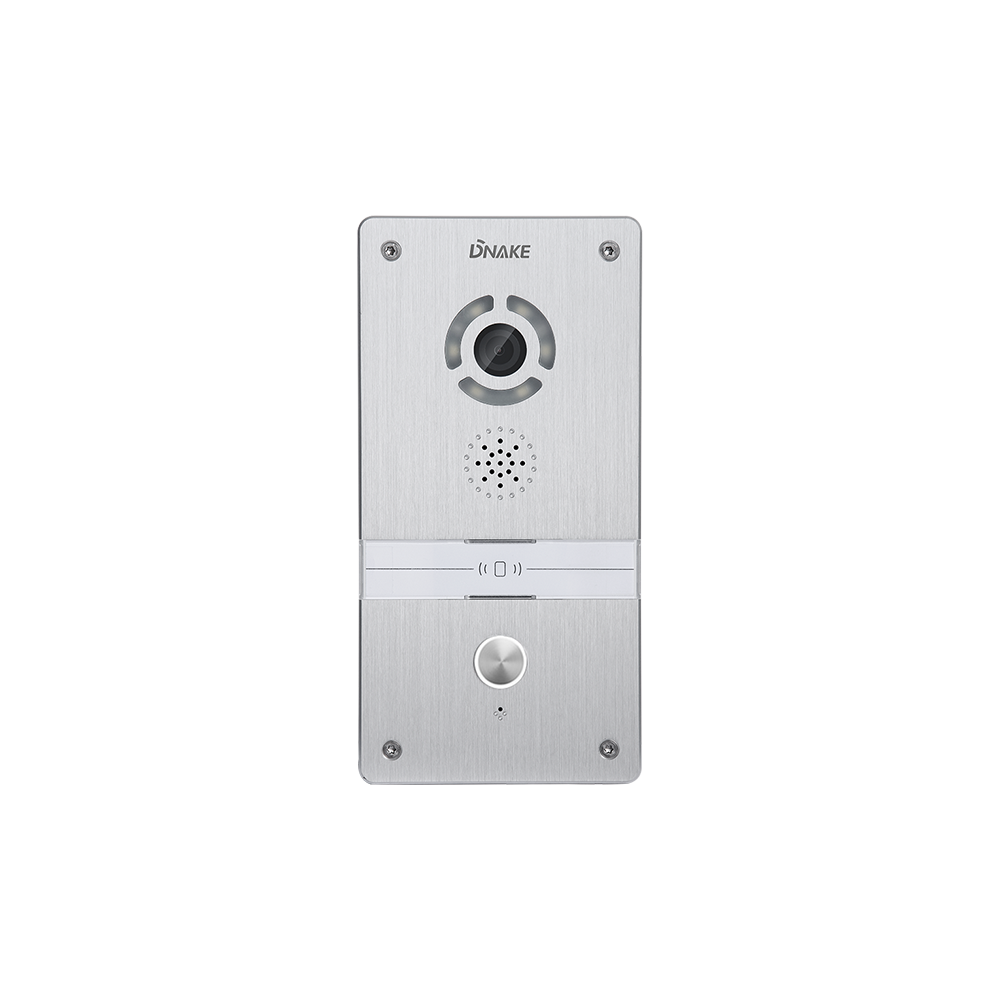

1-button SIP Video Door Phone
280SD-C12

1-button SIP Video Door Phone

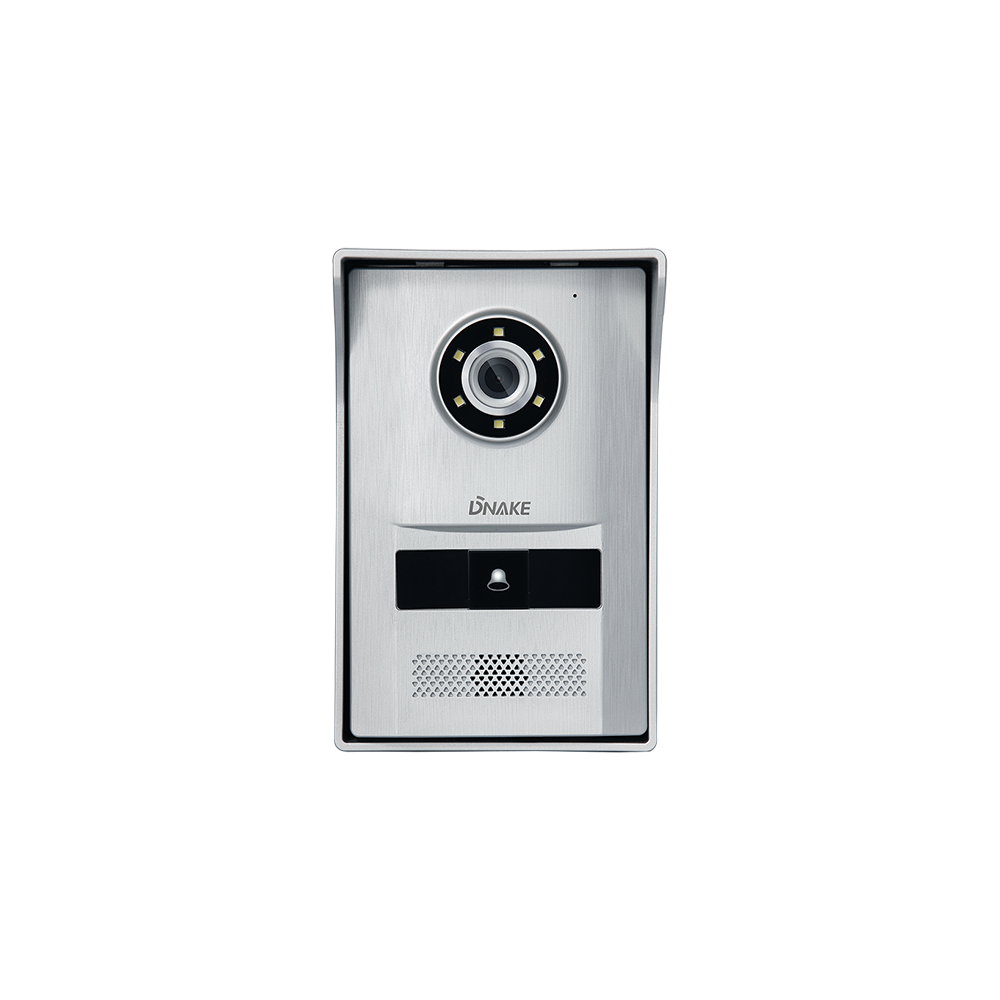

1-button SIP Video Door Phone
280SD-R2

1-button SIP Video Door Phone

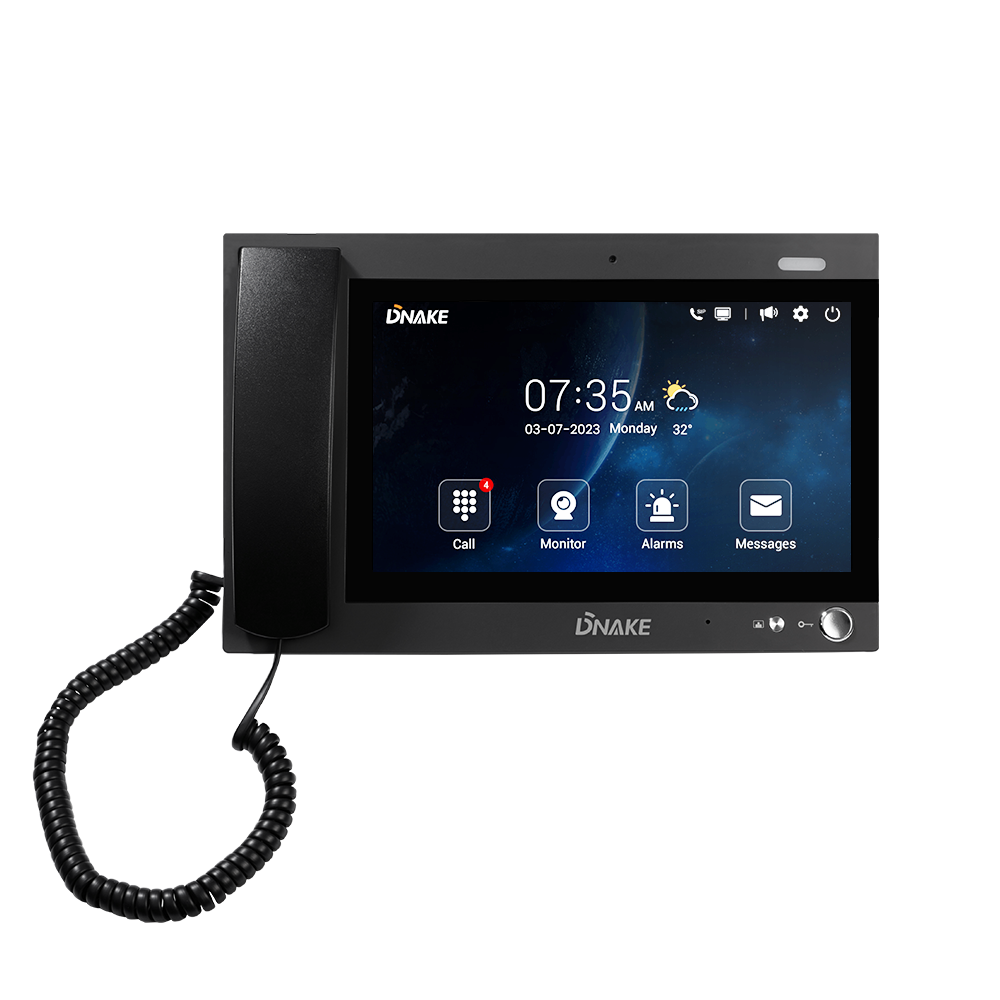

Android-based IP Master Station
