E217

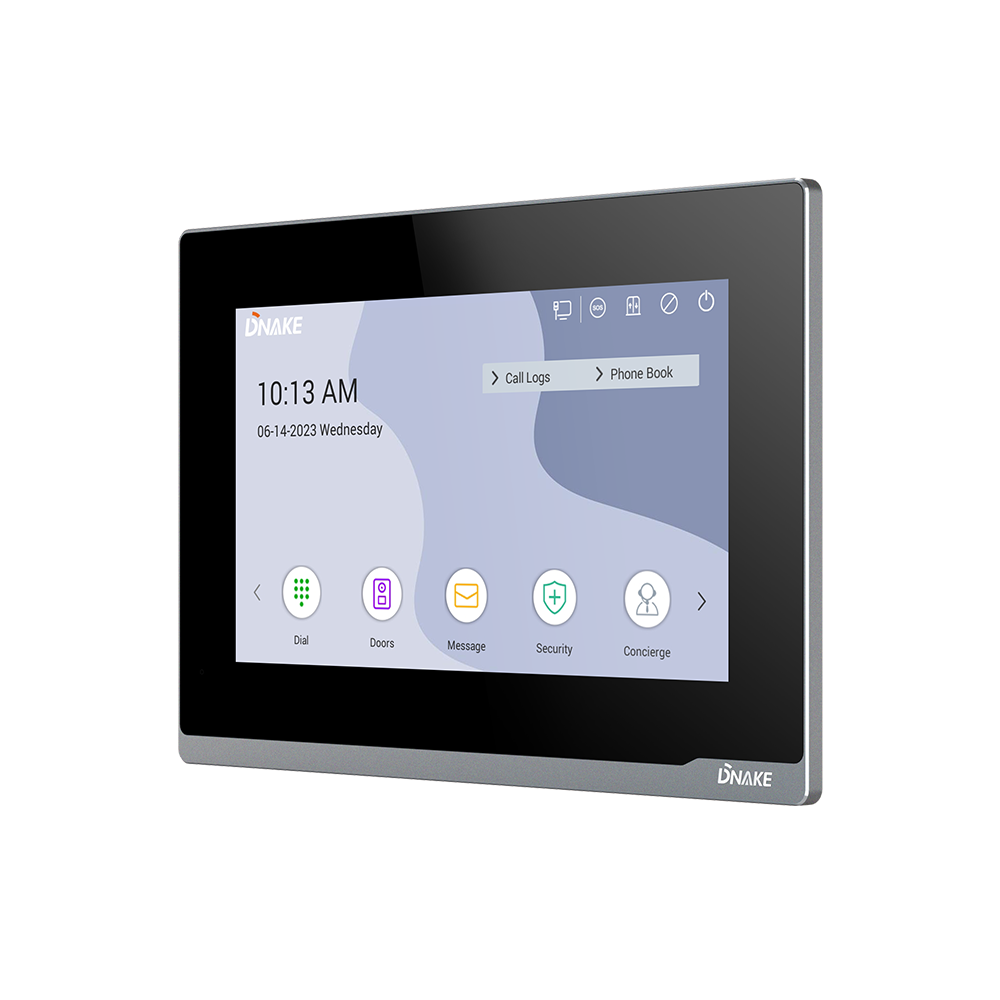

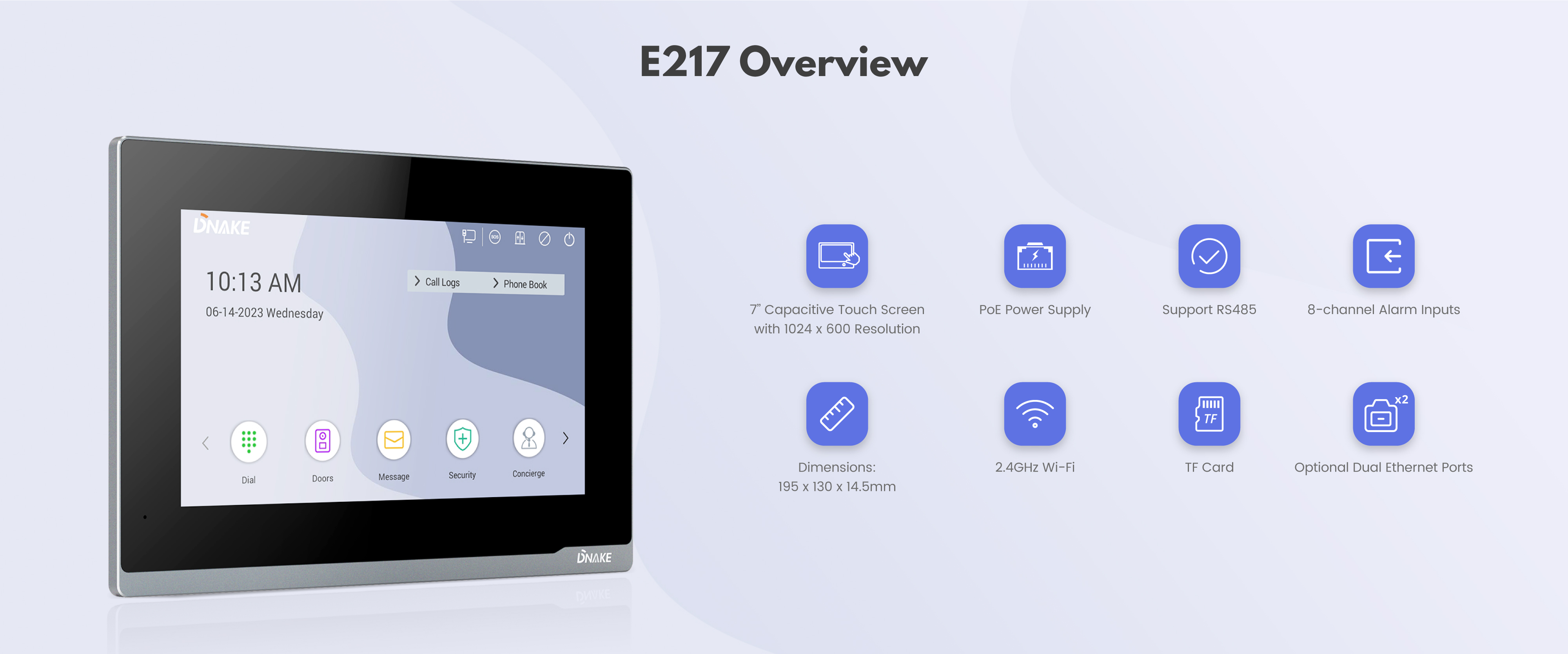

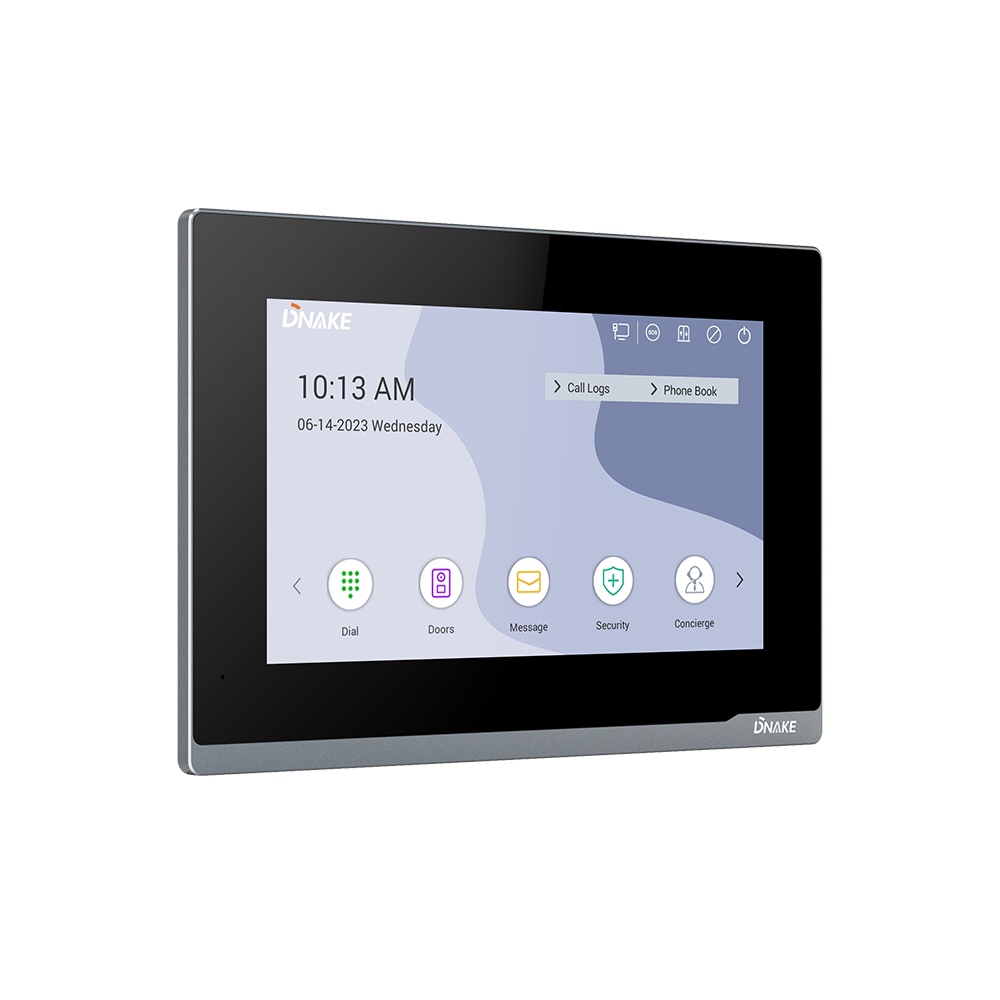

7” Linux-based WiFi Indoor Monitor

904M-S3 Android 10.1″ Touch Screen TFT LCD Indoor Unit

• 7” capacitive touch screen, 1024 x 600
• 8-ch alarm input, 1 x RS485
• Powered by PoE or power adapter (DC12V/2A)
• Support Wi-Fi
• Optional dual network ports
• Support monitoring 8 IP cameras

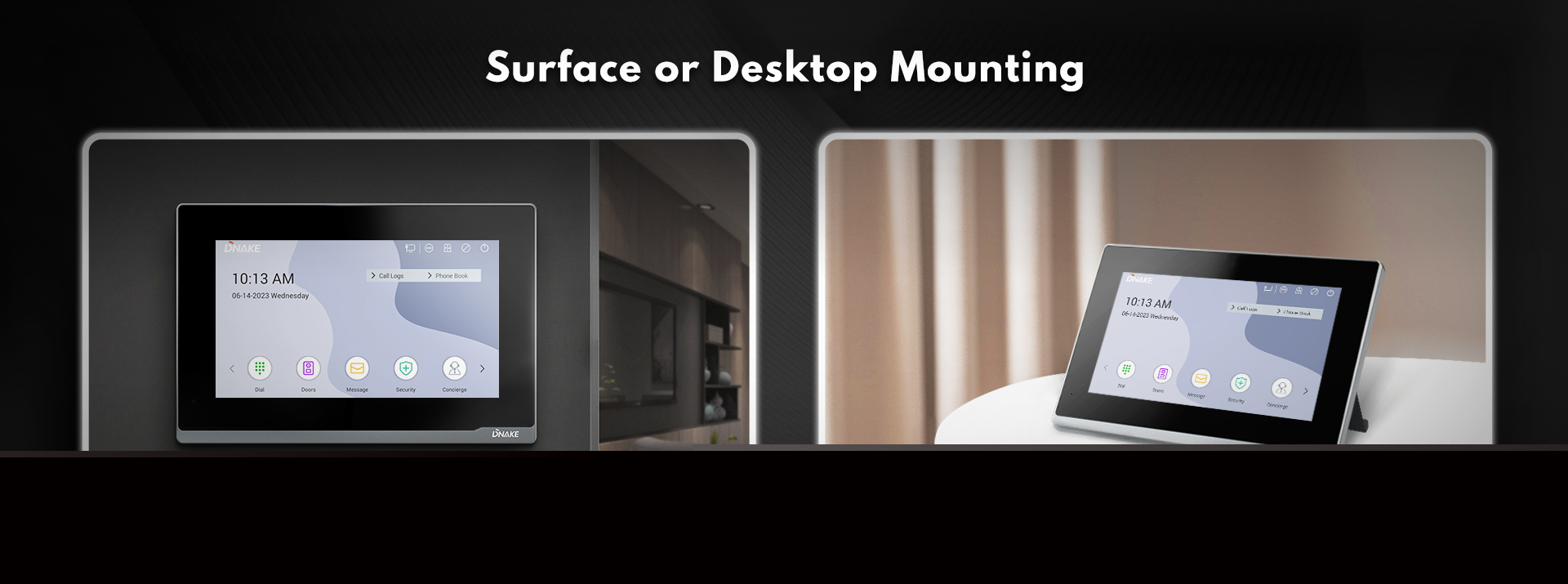

• Surface or desktop mounting
• Support TF card
• Quick installation and remote management via web interface
• Easy integration with elevator control system
 Y-4icon_画板 1 副本 3230704 wifi icon_1
E217 New Detail Page_1 E217 Detail Page_4 E217 Detail Page_3 E217 Mounting

Spec

Download

Product Tags

 Physical Property
  System  Linux
  Front Panel  Plastic
  Power Supply  PoE (802.3af) or DC12V/2A
  Standby Power  2W
  Rated Power  9W
  Wi-Fi  IEEE802.11 b/g/n,@2.4GHz
  Installation  Surface Mounting/Desktop
  Dimension  195 x 130 x 14.5mm
  Working Temperature  -10℃ - +55℃
  Storage Temperature  -40℃ - +70℃
  Working Humidity  10%-90% (non-condensing)
 Display
  Display  7-inch TFT LCD
  Screen   Capacitive touch screen
  Resolution  1024 x 600
 Audio & Video
  Audio Codec  G.711
  Video Codec  H.264
 Networking
  Protocol  SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPV4, ARP, ICMP
 Port
  Ethernet Port  1 x RJ45, 10/100 Mbps adaptive
  RS485 Port  1
  Power Output  1 (12V/100mA)
  Doorbell Input  8 (Use any alarm input port)
  Alarm Input  8
  TF Card Slot  1
  • Datasheet 904M-S3.pdf
